Single Boom Jumbos, Twin Boom Jumbos, Tunnelling Jumbos For Hire

Minspares are the WA Goldfields top provider of underground mining equipment such as the twin boom jumbo. We pride ourselves on our service offerings and are confident that we can meet your mining project needs! Minspares carry used underground machinery, with service that ensures our hire equipment is running at optimal levels at all times.

We offer a selection of single boom and twin boom jumbos from the industry’s most trusted brands including  Sandvik and Atlas Copco. Our underground equipment stands up to tough conditions but is flexible enough to perform a variety of tasks. Equipped with and hydraulic functions, these machines improve time efficiency and accuracy in underground mining jobs.

Our development drill fleet includes the following models :

  • Atlas Copco Boomer 104
  • Sandvik Axera 5-140
  • Sandvik Axera 7-240
  • Sandvik Axera 7-260
  • Sandvik Axera 7-260C
  • Sandvik DD420-60C

Minspares Development Drills For Hire:

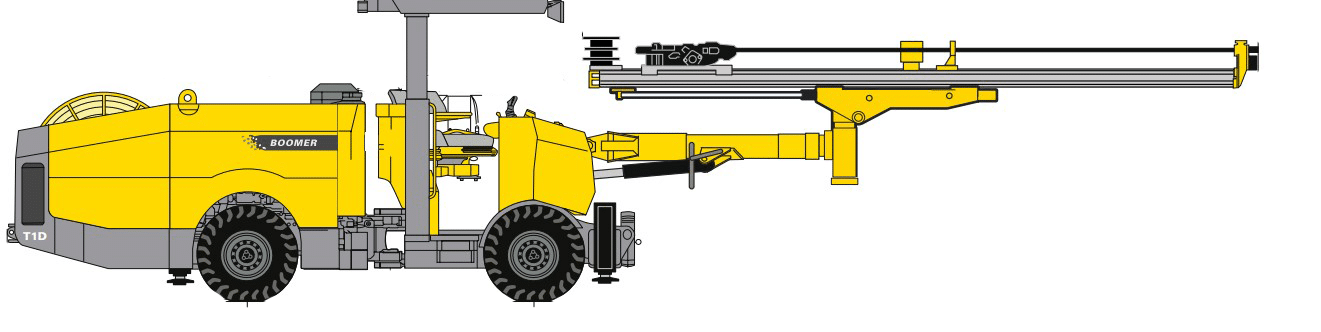

Atlas Copco Boomer 104

Boomer 104 is a compact single boom tunnelling and mining jumbo designed for drilling narrow tunnel cross sections. This machine has an open cabin, But 4B boom, 1838ME drifter, and a BMH 2000 series split feed.

Voltage:1000 V

Standard Features

  • COP 1638 or COP 1838ME rock drill
  • BUT 4B heavy-duty boom
  • Hydraulically controlled drilling system
  • Articulated carrier with four-wheel drive
  • BMH 2800 heavy-duty aluminium feed
Boomer 104

Sandvik Axera 5-140

AXERA 5-140 is a compact single boom electro-hydraulic jumbo designed or fast and accurate drilling in small drives. This machine has an open cabin, TB40 boom, HLX5 drifter, and a 6/10 TFX feed.

Drilling range: 43 to 64mm holes.

Voltage:1000 V

Standard Features

  • HLX5 Rock Drill
  • THC 560 Control System
  • HP 560 Power Pack
  • TC 5 Carrier
Sandvik-Axera-5-140

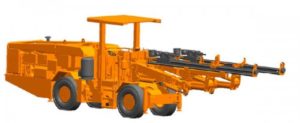

Sandvik Axera 6-240

AXERA 6-240 is a compact twin boom electro-hydraulic jumbo designed for fast and accurate drilling in small drives. This machine has an open cabin, TB40 booms, HLX5 drifters, and a 6/12 TFX feeds. It is suited to rapid twin boom development in smaller drives, but just as comfortable in a larger heading.

Drilling range: 43 to 64mm holes.

Voltage:1000 V

Standard Features

  • HLX5 Rock Drill
  • THC 560 Control System
  • HP 560 Power Pack
  • TC 6 Carrier
Pic1824-500x205

Sandvik Axera 7-240

AXERA 7–240 is a two boom electro-hydraulic jumbo designed or fast and accurate drilling. This machine has an open cabin, HLX5 drifters, and a selection of feed options available including fixed or TFX. It is suited to narrower drives than a standard Axera 7 with its narrow axle configuration, TB40 booms, and 6/12 TFX feeds.

Drilling range: 43 to 64mm holes.

Voltage:1000 V

Standard Features

  • HLX5 Rock Drill
  • THC 560 Control System
  • HP 560 Power Pack
  • TC 7 Carrier
  • Built-in diagnostics
Sandvik Axera7-240

Sandvik Axera 7-260C

AXERA 7–260 is a two boom electro-hydraulic jumbo designed or fast and accurate underground drilling This machine has an air-conditioned cabin, HLX5 drifters, and a selection of feed options available including fixed or TFX.

Drilling range: 43 to 64mm holes.

Voltage:1000 V

Standard Features

  • HLX5 Rock Drill
  • THC 560 Control System
  • HP 560 Power Pack
  • TC 7 W Carrier
  • TB 60 Boom
Axera7-260C

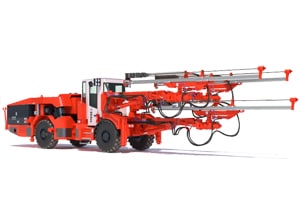

Sandvik DD420-60C

The DD420-60C is a twin boom electro hydraulic jumbo designed or fast and accurate drilling This machine has an air conditioned cabin, HLX5 drifters, and a selection of feed options available including fixed or TFX.

Drilling range: 43 to 64mm holes.

Voltage:1000 V

Standard Features

  • HLX5 Rock Drill
  • THC 560 Control System
  • HP 560 Power Pack
  • TC 7 W Carrier
  • TB 60 Boom
Axera7-260C

Need to hire a jumbo?

  • Industry’s Top Brands

  • Many Integrated Features

  • Experienced Staff

  • Flexible Availability

Minspares underground development jumbo drilling equipment delivers the highest productivity and quality of finished product attainable to each client. Equipped to provide operators with improved safety features.

More mechanised and efficient equipment is proven as the optimal solution enabling early access to and mining of underground reserves.

Sandvik and Atlas Copco offers a wide variety of well-engineered mining jumbos and mining development drill rigs for small-scale mine development and large-scale tunnelling. We offer a full range of drilling machines for hire.
